INKJ DT6601C

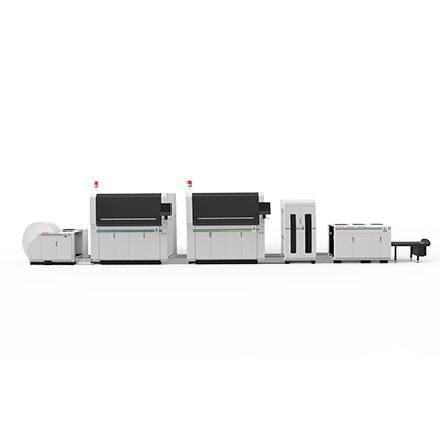

INKJ DT6601C is the result of team efforts of yingkejie in the ink-jet field. On the basis of inheriting the leading edge of r&d technology of the enterprise, inkjet control technology and color management technology of independent research and development are used to create a new form of printing in the field of color ink-jet. INKJ DT6601C color inkjet rotary digital printing machine, using independently developed ink supply and ink supply control system, stable ink supply, accurate ink quantity control; With independent intellectual property rights to prevent line breaking technology and guarantee the whole printing process without line breaking ink supply technology. The production speed can reach 1516A4 pages per minute, and the monthly production capacity is 55 million A4 pages, which can meet the needs of users for various color printing. Using self-developed water-based pigment ink, equipped with yingkejie multi-functional pretreatment unit, it can print 40g-200g coated paper and other types of printing media, winning diversified orders for customers.

The equipment parameters

INKJ DT6601C

Large format color inkjet rotary digital printing solutions

For the paper department

Paper winding mechanism: automatic winding

Maximum winding diameter: 1270mm

Maximum winding width: 650mm

Hardware and software system

Nozzle: industrial piezoelectric nozzle on demand

Printing mode: Double-sided eight colors (upgradable spot color)

Ink: environmentally friendly water-based pigment ink

Maximum printing accuracy: 600*1200dpi

Maximum printing speed: 1516A4 pages/min

Medium type: double adhesive paper, light paper, coated paper, newsprint, carbon free carbon paper, etc

Paper buffer unit

Through the B120 paper buffer unit and ink jet machine connection automatically cut the black and white text into single sheets, and automatically stack the dislocation of the output

The cutting tangent

Cutting paper weight: 40g - 200g

Paper width: 140-660 - mm

Maximum paper width: 650mm

Maximum paper length: 460mm

Line cutting stack line: Line cutting misaligned stack output

Support a variety of sizes and specifications of cutting: 16 open longitudinal cutting three stacked

Wide upgrade

16 open vertical stacked three, faster speed, higher capacity.

Stable and reliable

Select a variety of durable parts in line with the requirements of industrial production, only careful use and maintenance can be used for many years.

Economic and environmental

Simple and smooth equipment, no plate making, from the top to the collection of printed products only 1-2 people can complete, save labor and more environmental protection.

Best type for printing

Color books, color teaching materials, color manual single page

Best suited user type

Printing factory, joint plate factory graphic and text production and processing center publishing house, book company
