INKJ DT4401

发布时间:2021-06-30浏览次数:940
  • INKJ DT4401
  • INKJ DT4401
  • INKJ DT4401
  • INKJ DT4401

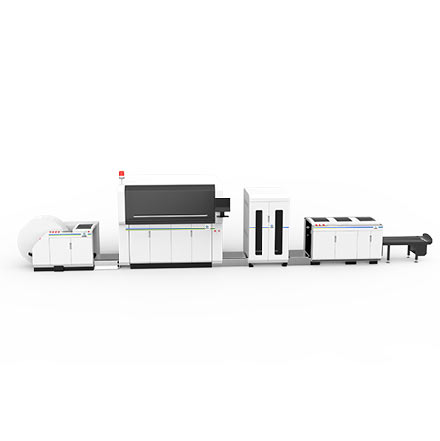

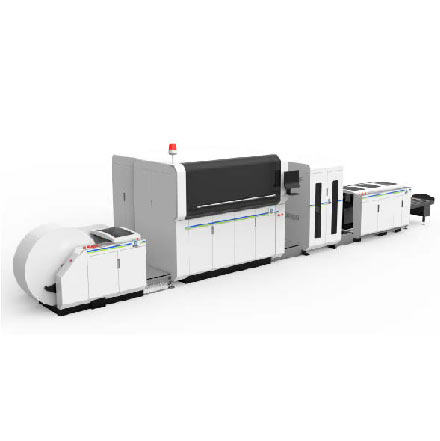

INKJ DT4401 is a high speed black and white inkjet rotary digital printer




INKJ DT4401 born to board printing, design, new carry industrial-grade on-demand piezoelectric nozzle, the largest printing is more suitable for 432 mm wide board printing business, has covers an area of a smaller, faster and return on investment higher characteristic, meet the demand of users quick change of the specifications and paper printing, without plate making and printing, Click the mouse to complete the work from web to book block, double-sided, single PASS high-speed inkjet printing mode, printing speed up to 1212 A4 sides/minute, support the misplacement of stacking, web to book block perfect solution, is to improve production capacity, cost saving good helper.


INKJ DT4401

Black and white double-sided inkjet rotary digital printing solution by

INKJ U120 paper supply section

INKJ DT4401 black and white double side inkjet printer

INKJ B120 paper buffer unit

INKJ C440 cutting line

Consisting of four parts, all the equipment is independently developed and produced by Winwin Digital technology with the concept of system engineering design. The equipment has a higher degree of automation, stronger overall connectivity, greatly reducing the difficulty of operation, and stable and efficient operation process.



Product parameters



INKJ U120 paper supply section

Paper feeding winding mechanism automatically winding web

Maximum winding diameter 1270mm

Maximum winding width 445mm





INKJ DT4401 black and white double side inkjet rotary digital printer

Digital nozzle on demand piezoelectric 600x1200DPI

Ink type water-based pigment ink independent research and development production

Printing mode black and white double sides can be upgraded double color

Printing speed 1212 A4 surface /min printing immediately after boot

Maximum paper width 445mm -

Paper type Common offset paper Digital offset paper

INKJ Workflow Inkjet Edition supports a wide range of international standard file formats





INKJ B120 paper buffer unit paper storage rack

Automatic palletizing buffer for paper buffer unit

Service device inkjet and cutting system



INKJ C440 cable Cut stack cables

Working principle Through the B12 buffer unit and ink jet system connection automatically cut black and white text into single sheet as required, automatic stack, dislocation and output

Cutting mode knife cutting hob cutting

Maximum speed 100m/min

Paper weight 40GSM 200GSM

Maximum paper receiving width 440mm

Maximum paper length 460mm length can be customized

Support specification and size 16 open longitudinal arrangement cut two stacked

Automatic collection device can accommodate multiple product collection independent research and development



The best printing type for the scheme:


Monochrome books and periodicals

Textbooks, teaching AIDS, examination papers

Instruction manual, operation manual

Documents, vouchers, books, etc


The best user type for the scheme:


Printing house, combination plate factory

Graphic production and processing center

Large, medium graphic quick printing shop
